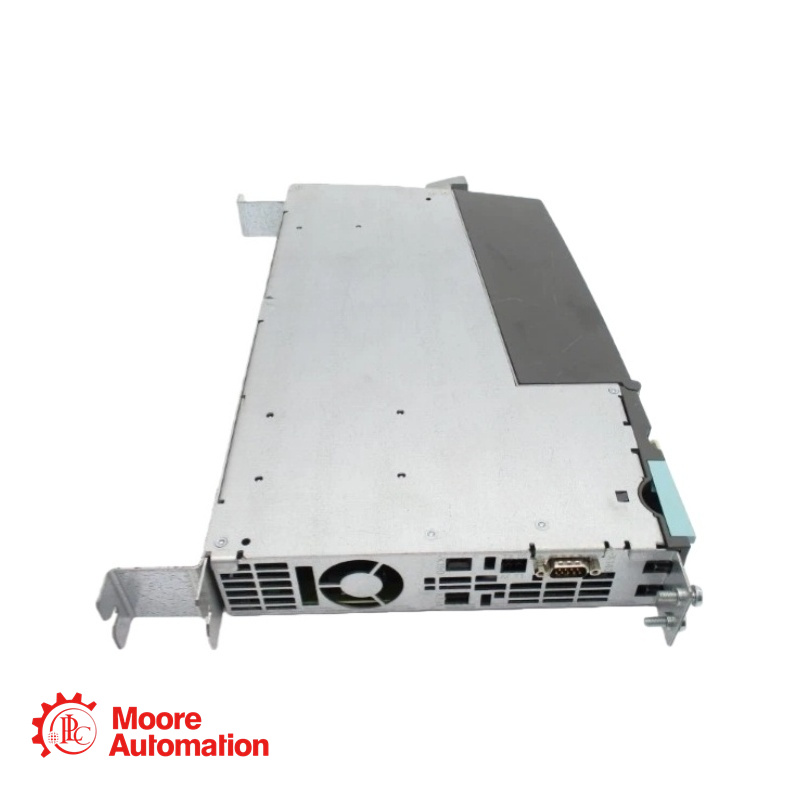

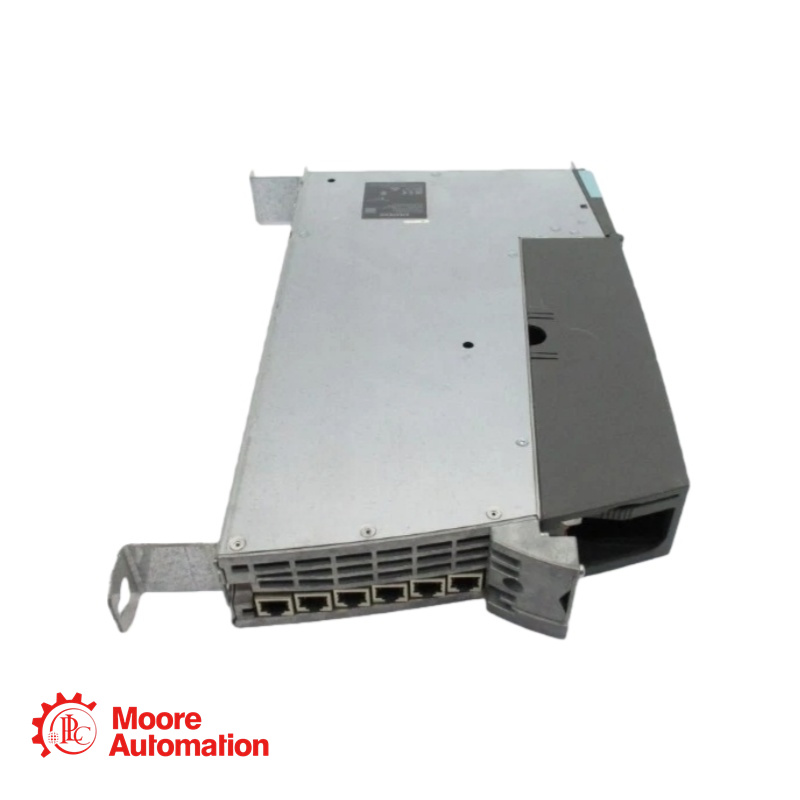

The Siemens SIMOTION D435-2 DP/PN (6AU1435-2AD00-0AA0) is a high-performance, drive-based motion control unit in the STANDARD performance class.
Marca :
SiemensNumero parte :
6AU1435-2AD00-0AA0Il peso :
3.7 kgDimensione :
380 mm x 50 mm x 270 mmPaese d'origine :
GermanyCodice SA :
8537101190Descrizione :
Motion Control Unit
Get in Touch:
Sales Manager:Frida
Phone/Whatsapp:+86 15359408275
Email: sales5@mooreplc.com
Quick Facts
Memory:
RAM (Work Memory): 109 Mbyte
Additional RAM for Java: 20 Mbyte
RAM Disk (Load Memory): 50 Mbyte
Retentive Memory: 364 kbyte
Persistent Memory (CF Card): 1.5 Gbyte
Power Supply:
DC Supply Voltage: 24 V (Range: 20.4 V to 28.8 V)
Typical Current Consumption: 1000 mA (with no load on I/O, no 24V supply via DRIVE-CLIQ/PROFIBUS)
Typical Inrush Current: 5 A
Typical Power Loss: 24 W
Performance & Cycle Times:
Maximum Number of Axes: 32
Minimum Cycle Clocks:
PROFIBUS: 1 ms
PROFINET Send: 0.25 ms
Interpolator: 0.25 ms
Servo: 0.25 ms (for SERVO or SERVO-FAST)
DRIVE-CLIQ Interfaces: 6
USB Ports: 2
Industrial Ethernet Ports: 2
Digital Inputs (DI): 12
Voltage: 24 V nominal (Signal "1": 15...30 V; Signal "0": -3...+5 V)
Isolation: Yes, in groups of 6
Typical Input Current ("1"): 9 mA
Digital Inputs/Outputs (DI/DO): 16
Load Voltage: 24 V nominal (20.4 V to 28.8 V)
Max. Current per Output: 500 mA
Max. Leakage Current: 2 mA
Typical/Max. Output Delays: "0"→"1": 150 µs / 400 µs; "1"→"0": 75 µs / 150 µs
Cam Output Reproducibility/Resolution: 10 µs / 1 µs
Max. Switching Frequency: Resistive load: 4 kHz; Inductive load: 2 Hz; Lamp load: 11 Hz
Ambient Temperature (Operation): 0 °C to +55 °C (Derates above 2000 m altitude)
Ambient Temperature (Storage): -25 °C to +55 °C
Ambient Temperature (Transport): -40 °C to +70 °C
Relative Humidity (Operation): 5% to 95% (non-condensing)
We are your best choice
Our company specializes in supplying modular spare parts for globally renowned brands in DCS systems, robotic systems, and large servo control systems, with many years of industry experience.
We maintain a strong focus on leading brands such as ABB, Bently Nevada, GE, Honeywell, Emerson, Allen‑Bradley, Yokogawa, Triconex, Siemens, and Foxboro. Continuously innovating, we are dedicated to enhancing the supply availability for discontinued automation components. No matter where our customers are located or how rare the required part may be, we consistently connect them with the products they need.
Applications & Industries
▲Core Industry:
Electric Power Generation
▲Specific Application Context:
Gas Turbine Power Plants
