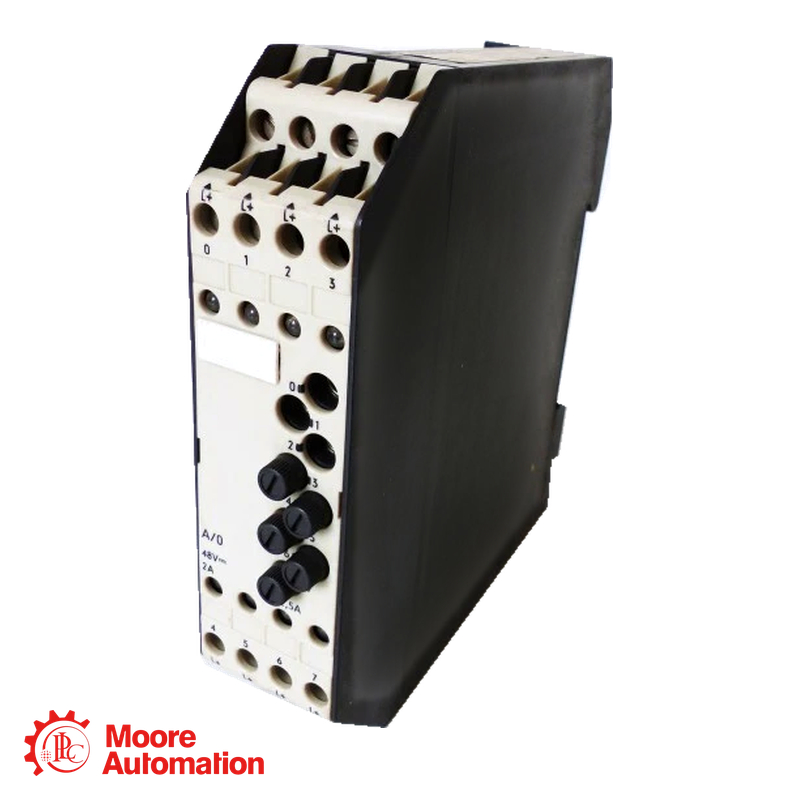

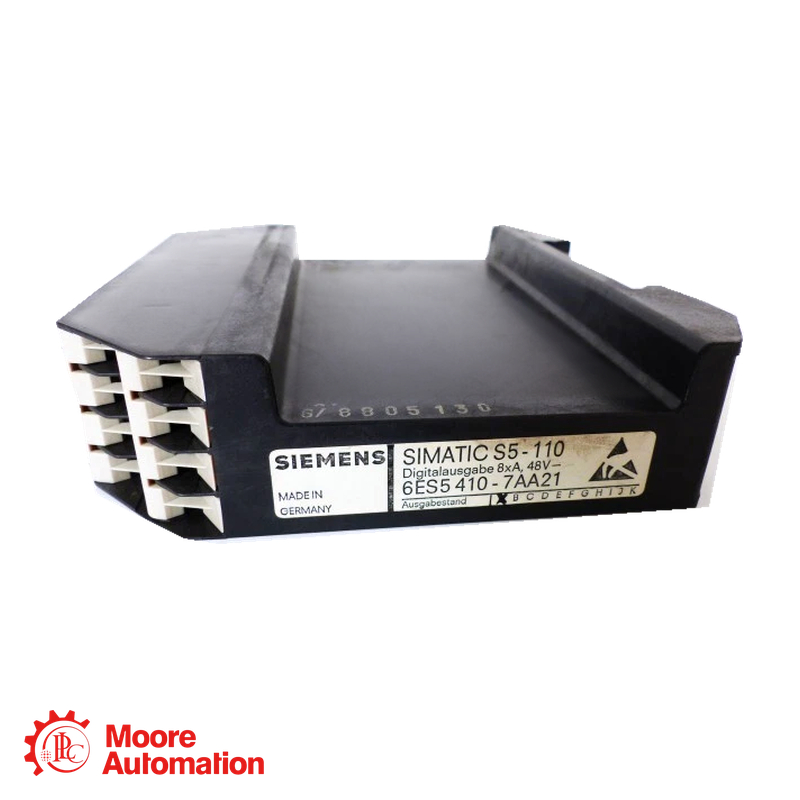

Siemens 6ES5410-7AA21 SIMATIC S5 410 8-Output 48 V DC 2 A Digital Output Module
Siemens 6ES5410-7AA21 SIMATIC S5 410 8-Output 48 V DC 2 A Digital Output Module
Siemens 6ES5410-7AA21 SIMATIC S5 410 8-Output 48 V DC 2 A Digital Output Module

Siemens 6ES5410-7AA21 SIMATIC S5 410 8-Output 48 V DC 2 A Digital Output Module

Siemens SIMATIC S5 · 410 Digital Output Module

6ES5410-7AA21

The 6ES5410-7AA21 is a Siemens SIMATIC S5 410 static digital output module with eight outputs, a 48 V DC rating, and 2 A maximum output current.

HEIGHT166 mm
WIDTH40 mm
DEPTH150 mm
WEIGHT0.68 kg
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informarsi ora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SIMATIC S5 410 8-OUTPUT 48 V DC MODULE
Siemens SIMATIC S5

6ES5410-7AA21

410 · 8 Outputs · 48 V DC · 2 A

SIMATIC S5 · 410 STATIC DIGITAL OUTPUT MODULE

PRODUCT ROLE
6ES5410-7AA21 is a Siemens SIMATIC S5 410 static digital output module with eight outputs, rated for 48 V DC and up to 2 A.
CONFIGURATION NOTE
For 6ES5410-7AA21, confirm the complete article number, 48 V DC supply, connected load, and installed S5-110S configuration before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens 6ES5410-7AA21 ↗
SIMATIC S5 410 8-OUTPUT 48 V DC MODULE

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT166 mm
WIDTH40 mm
DEPTH150 mm
WEIGHT0.68 kg
Official Siemens S5-110S Operating Instructions for 6ES5410-7AA21.
Digital output configurationThe official Siemens S5-110S operating instructions identify 6ES5410-7AA21 as the 48 V DC version of the static 410 digital output module.
General Information −
BrandSiemens
Part number6ES5410-7AA21
Product typeDigital Output Module
Product familySIMATIC S5
Mechanical Data ＋
Height166 mm
Width40 mm
Depth150 mm
Approximate weight0.68 kg
Electrical & Output Data ＋
Number of outputs8
Rated supply voltage48 V DC
Maximum output current2 A
Source: Siemens S5-110S Operating Instructions for 6ES5410-7AA21.
FAQ

Questions Buyers Ask Most

What type of product is 6ES5410-7AA21?＋

6ES5410-7AA21 is a Siemens SIMATIC S5 410 static digital output module.

How many outputs does 6ES5410-7AA21 provide?＋

6ES5410-7AA21 provides eight digital outputs.

What is the rated supply voltage of 6ES5410-7AA21?＋

The rated supply voltage of 6ES5410-7AA21 is 48 V DC.

What is the maximum output current of 6ES5410-7AA21?＋

The maximum output current of 6ES5410-7AA21 is 2 A.

Are the outputs on 6ES5410-7AA21 galvanically isolated?＋

Yes. The outputs on 6ES5410-7AA21 are galvanically isolated by optocouplers.

What are the module dimensions of 6ES5410-7AA21?＋

The dimensions of 6ES5410-7AA21 are 166 × 40 × 150 mm.

What is the approximate weight of 6ES5410-7AA21?＋

The approximate weight of 6ES5410-7AA21 is 0.68 kg.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, 48 V DC supply, connected load, and installed S5-110S configuration for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
6ES5410-7AA21

The official Siemens S5-110S Operating Instructions explicitly list 6ES5410-7AA21.

Official Siemens S5-110S Operating Instructions

This manufacturer manual documents the static 410 output module, eight outputs, 48 V DC rating, 2 A maximum output current, dimensions, and weight.

OPEN OFFICIAL MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical data on this page was checked against the official Siemens S5-110S Operating Instructions for 6ES5410-7AA21.

MODEL IDENTIFICATION

Model code analysis for 6ES5410-7AA21

Only manufacturer-supported segments of the requested Siemens reference are shown below.

Siemens · BRAND
Siemens SIMATIC S5410 DIGITAL OUTPUT MODULE · 8 OUTPUTS · 48 V DC
6ES5

SIMATIC S5

This printed segment identifies the Siemens SIMATIC S5 product family for the requested reference.

410

Digital Output Module

The official Siemens S5-110S instructions identify 410 as the digital output module group.

Official identification: SIMATIC S5 410 static digital output module with eight outputs, 48 V DC rating, and 2 A maximum output current.
APPLICATION AREAS

Application fields for 6ES5410-7AA21

SIMATIC S5-110S Output StationsDigital output control in SIMATIC S5-110S hardware
48 V DC Load SwitchingSwitching 48 V DC field loads
INDUSTRIAL AUTOMATION APPLICATIONS 6ES5410-7AA21 SIMATIC S5 410 STATIC DIGITAL OUTPUT MODULE
Resistive and Inductive LoadsSwitching supported load types within published ratings
Galvanically Isolated OutputsOutput isolation by optocouplers
