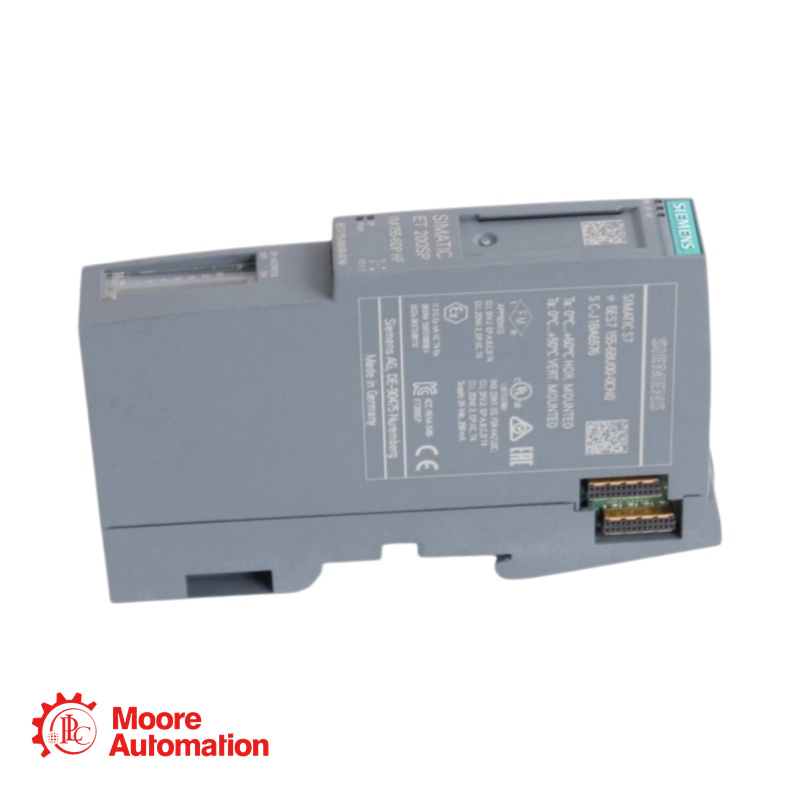

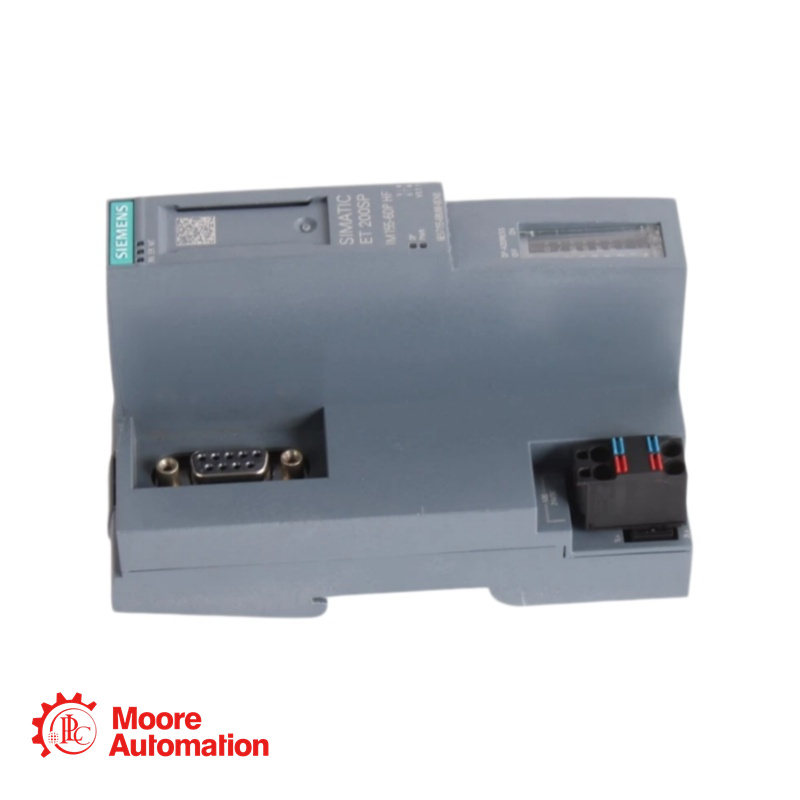

Siemens 6ES7155-6BU00-0CN0 PROFIBUS Interface Module

Contact Us

Email:sales5@mooreplc.com
Phone/Whatsapp/Wechat:+86 15359408275

Description

SIMATIC ET 200SP, PROFIBUS IM bundle, IM 155-6DP HF, max. 32 I/O modules and 16 ET 200AL modules, multi hot swap, bundle consists of: Interface module (6ES7155-6BU00-0CN0), server module (6ES7193-6PA00-0AA0), PROFIBUS connector (6ES7972-0BB70-0XA0)

Specifications

Protocol: PROFIBUS DP (supports speeds up to 12 Mbps).
Capacity: Up to 32 I/O modules per station.
Data Volume: Max. 244 bytes for input and 244 bytes for output.
Hot Swapping: Supports Multi Hot Swap (replacing multiple modules during operation without stopping the station).
Power: 24V DC supply via the light-colored BaseUnit.

Application

Many factories still run on Siemens S7-300 or S7-400 that use PROFIBUS. When expanding these systems, engineers use the 6ES7155-6BU00-0CN0 to add ET 200SP I/O (which is smaller and more modular) without having to upgrade the entire to PROFINET.
Application: Chemical plants or continuous production lines.
Benefit: You can pull out and replace multiple I/O modules while the station is still running (RUN mode) without crashing the PROFIBUS network.
The ET 200SP system is roughly 50% smaller than the older ET 200M or ET 200S systems.
Application: Small machine control boxes or localized junction boxes on a factory floor.
Benefit: The 6ES7155-6BU00-0CN0 allows high-density I/O (up to 32 modules) in a very tight physical footprint.
It supports I&M (Identification & Maintenance) data (I&M0 to I&M3).
Application: Asset management systems.
Benefit: Allows the maintenance team to remotely read the serial number, installation date, and hardware version of the module via the PROFIBUS line.
