The X20CP1486 is a high-performance CPU for the X20 System.
Marca :
B&RNumero parte :
X20CP1486Il peso :
0.64 kgDimensione :
15.2x11x8.5cmPaese d'origine :
AustriaCodice SA :
8537101190Descrizione :
CPU
Brand
B&R
Part number
X20CP1486
Origin
USA
Description
CPU
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275

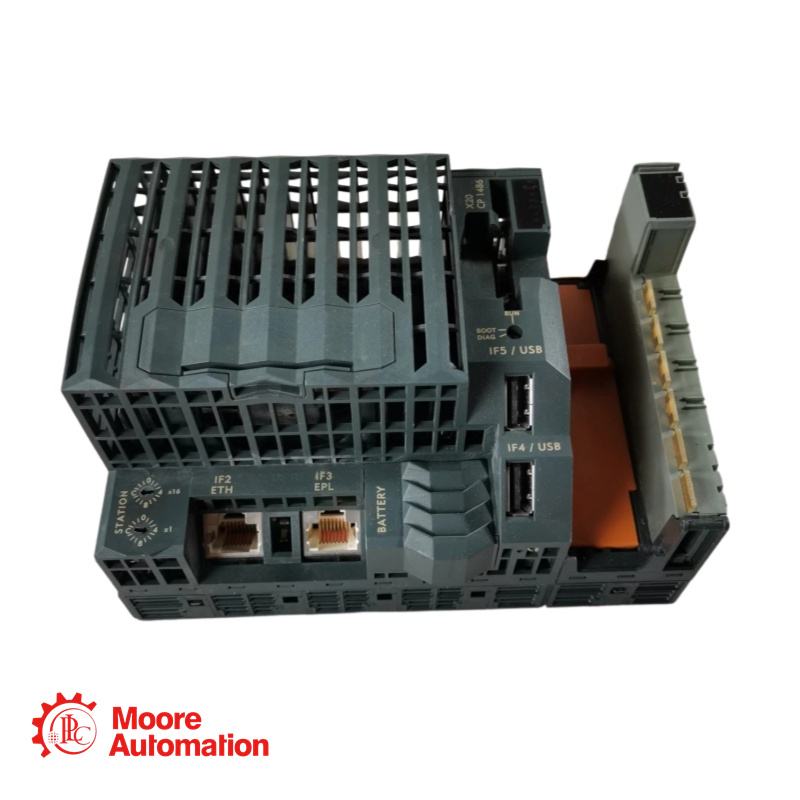

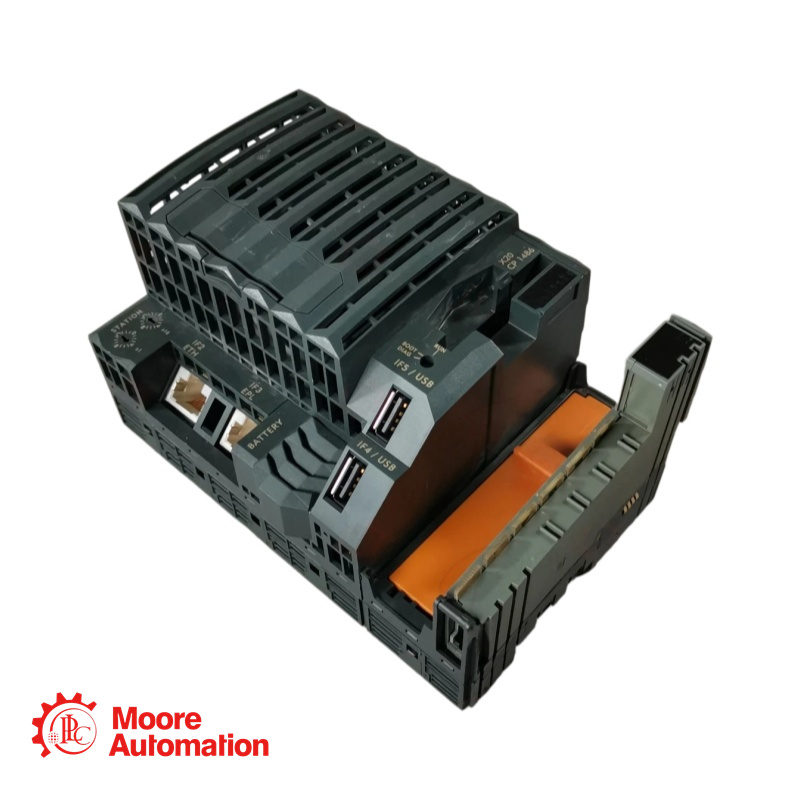

Description of X20CP1486
The X20CP1486 is a high-performance CPU for the X20 System. This CPU can be used anywhere from high-end applications in machine manufacturing to demanding tasks in process control. Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3486 are that the X20CP1486 only has one slot for interface modules and a smaller width.
Intel Celeron 650 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan can be exchanged from the outside, tool-free
Extremely compact
Parameter
Interfaces:1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
Power consumption without memory card, interface module and USB:13.5 W
Input voltage:24 VDC -15% / +20%
Input current:Max. 2.2 A
Nominal output power:7 W
Input voltage:24 VDC -15% / +20%
Fuse Required line fuse: Max. 10 A, slow-blow
Nominal output voltage:24 VDC
Permissible contact load:10 A
Standard memory RAM:64 MB SDRAM
FAQ
What are the typical applications for the X20CP1486?
The X20CP1486 is a high-performance CPU suitable for a wide range of applications, from high-end machine manufacturing to demanding process control tasks.
How does the X20CP1486 differ from the X20CP3486?
The only differences are:
The X20CP1486 has only one slot for interface modules.
It has a smaller width than the X20CP3486.
Performance and core features remain similar.
How much memory does it have?
Standard model comes with 64 MB SDRAM.
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
