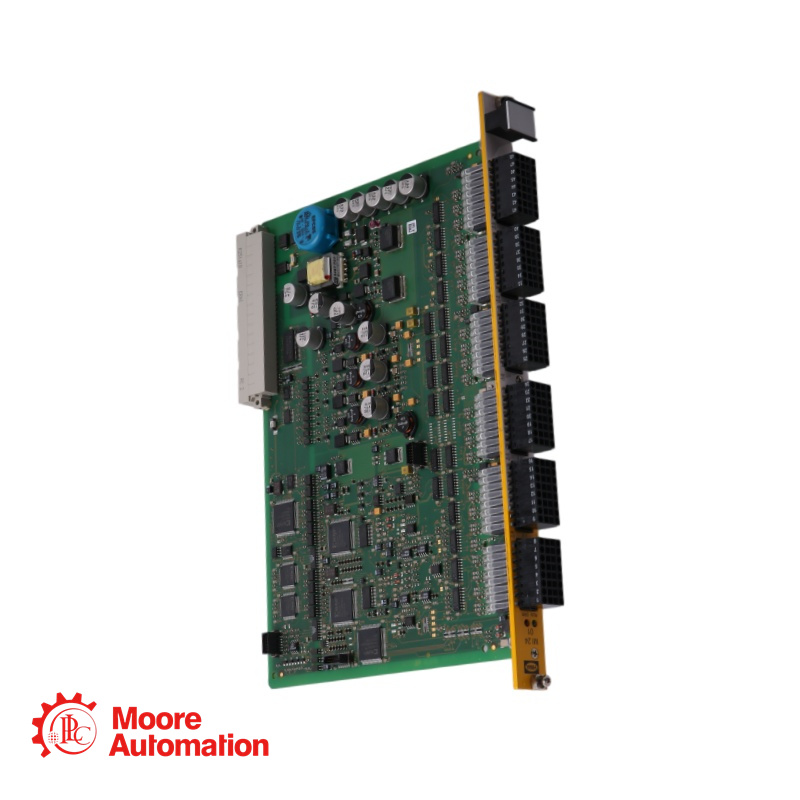

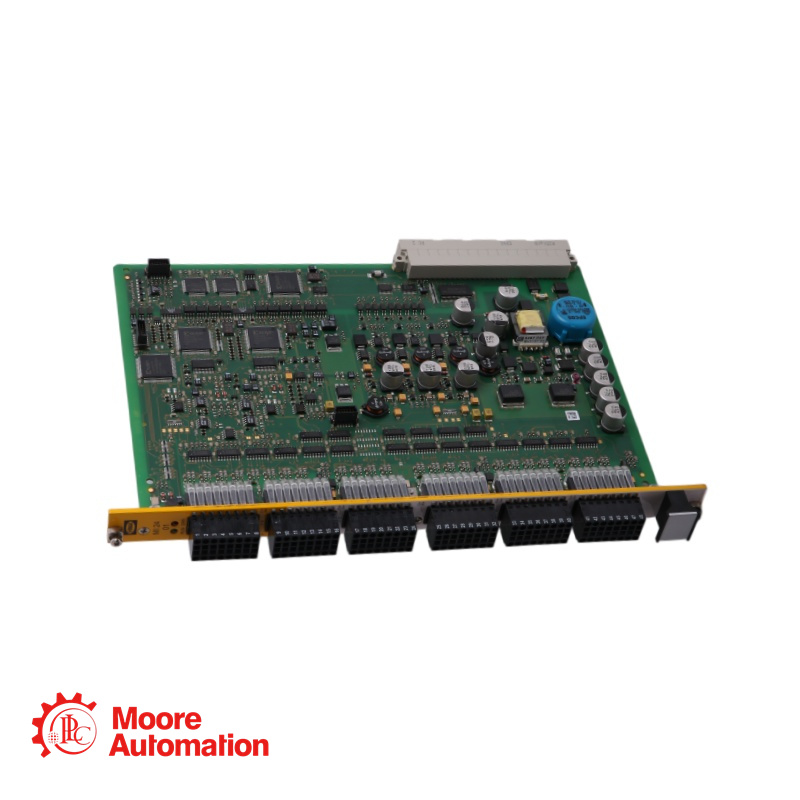

Hima F60 AO 8 01 Analog Output Module

Contact Here!

Sales Manager Frida ★★★★★

Description

• The F60 AO 8 01 module provides 8 analog output channels for transferring and matching analog signals between the microprocessor system (central module) and the production plant.

Specification

●Module Type:AO 8 01
●Function:8 analog outputs
●Width:4 SU (spacing units)
●Height:262 mm (6 units high)
●Mounting:Pluggable terminals on front plate
●Protection Rating:IP20 (when installed with cover plates)
●Operating Temperature:0 °C to +60 °C
●Storage Temperature:-40 °C to +85 °C
●Module Status Indication:LED indicators

Application

The F60 AO 8 01 is widely used in:

Process Industry:Chemical, petrochemical, pharmaceutical plants

Power Generation:Burner management systems (per EN 298, NFPA 85), turbine control

Oil & Gas:Emergency shutdown (ESD) systems, fire and gas detection systems

Manufacturing:Machine safety systems (per EN 954-1 Cat. 4), press controls

Building Automation:Fire alarm systems

FAQ for F60 AO 8 01

• Q1: What is the width of the AO 8 01 module?

A: The AO 8 01 occupies 4 SU (spacing units) in the F60 rack. Total rack width is 40 SU, with 24 SU available for user I/O modules.

• Q2: Can I insert or remove the AO 8 01 module while the system is powered?

A: No. Modules may not be removed or inserted during operation. The PES must be switched off before changing module assembly.

• Q3: What happens if an analog output channel fails?

A: The defective channel is switched off and goes to a safe, de-energized (power-free) state. The fault is indicated via the "ERR" LED, and the operating system passes safe "0" values to the application program. The remaining channels continue to operate normally.

• Q4: How are faults diagnosed on the AO 8 01?

A: Connect a programming unit (PADT) running ELOP II Factory to the controller. Use the Diagnosis window (Online → Diagnosis) to view error codes and sources. The "ERR" LED on the module front plate also indicates a fault.
